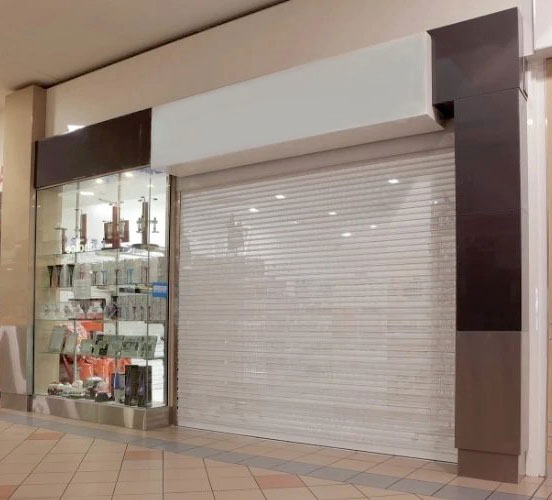

50mm Extruded Vision Roller Shutter

On Sale / Starting From $1,200.00

This roller shutter range is made with a precision extruded roller shutter profile, with approximately 20% vision and ventilation perforations, and is suitable for many commercial and industrial grade applications.

Just a few details! Tell us your measurements, how you want it to operate, and a bit about the location, and we’ll send you a free quote!

SKU: SPE-9055-1 Category:
50mm Extruded Vision Roller Shutters

Ideal for commercial and industrial applications, including shopping centers and car parks, our 50mm Extruded Vision Roller Shutter is expertly designed with approximately 20% perforations, allowing for enhanced visibility and ventilation while maintaining high security. Crafted from premium aluminum alloy, this shutter delivers the perfect balance of strength, airflow, and visibility.

Built with a commercial-grade, single-wall extruded profile, this shutter offers heavy-duty durability, ensuring long-term performance and reliability. Featuring a heavy-duty steel axle with high-quality internal sealed bearings, it provides enhanced safety and smooth operation, making it a trusted security solution.

With the ability to accommodate widespan widths of up to 5500mm and heights of up to 3000mm, this shutter eliminates the inconvenience of managing multiple smaller shutters, offering seamless and efficient operation.

Technical Specification

Maximum Shutter Width5500mm
Maximum Shutter Height3000mm
Maximum Surface Area9m2
Curtain Weight/Metre²8.5kg
Number Of Slats/Metre20
Profile Slat Covering50mm
Profile Slat Thickness10.8mm
Axle TypesOctagonal Steel
Bottom Bar Dimensions67mm x 10mm
Guide Dimensions68mm x 25mm/18mm
Paint FinishHigh Quality Powder Coat Finish

Applications

  • Commercial Windows
  • Commercial Shop Fronts & Doorways.
  • Garage Doors.
  • Protection for Factories, Warehouses, Clubs, Pubs & Hotels, Restaurants, Pharmacies, Sports Complexes, Arcades, Shopping Mall Entrances & Shopping Centre Grilles.

Features

  • High quality, strong aluminium alloy construction.
  • Commercial grade single wall extruded profile for heavy duty strength.
  • Vision and ventilation perforations for airflow
    and light.
  • High quality powder coated finish for maximum
    abrasion resistance.
  • Perforated and curved face profile.
  • Roll-tight design.
  • Range of colours.
  • Heavy duty steel axle with high quality internal
    sealed bearings.
  • Suitable for widespan widths up to 5500mm.
  • Can be manually operated or motorised.
  • Made in Australia.

Control Options

Manual Options

Steel_Cable_Winder

Steel Cable Winder (Up To 50Kg)*

Spring_loaded_With_key_lock

Spring Loaded With Key Lock

Motorised Options

Remote_Control_With_Solar-smart-plus

Remote Control With SolarSmartâ„¢ Plus Automation 12V Motor (Up To 50Kg)*

Power-smart-control-system-with-12v-motor

PowerSmartâ„¢ Control System With 12V Motor (Up To 50Kg)*

Wall-switch-with-240-electric

Wall SwitchWith 240V ElectricMotor*

Remote_control_with-240v-electric

Remote Control With 240V Electric SIMU Hz Motor*

Motorised Options (continued)

key-switch-with-240v-electric

Key Switch With 240V Electric Motor*

Crank-handle-with-240-electric-manual-override

Crank Handle With 240V Electric Manual Override Motor

remote-control-key-ring-transmitter-with-240v-electric-motor

Remote Control (Key Ring Transmitter) With 240V Electric Motor & Multi-Function SIMU SD100 Hz Radio Receiver & Control Unit*

* Control options must be installed in an indoor environment.
